6x1-42x3mm
Xuzhou Global
73043190

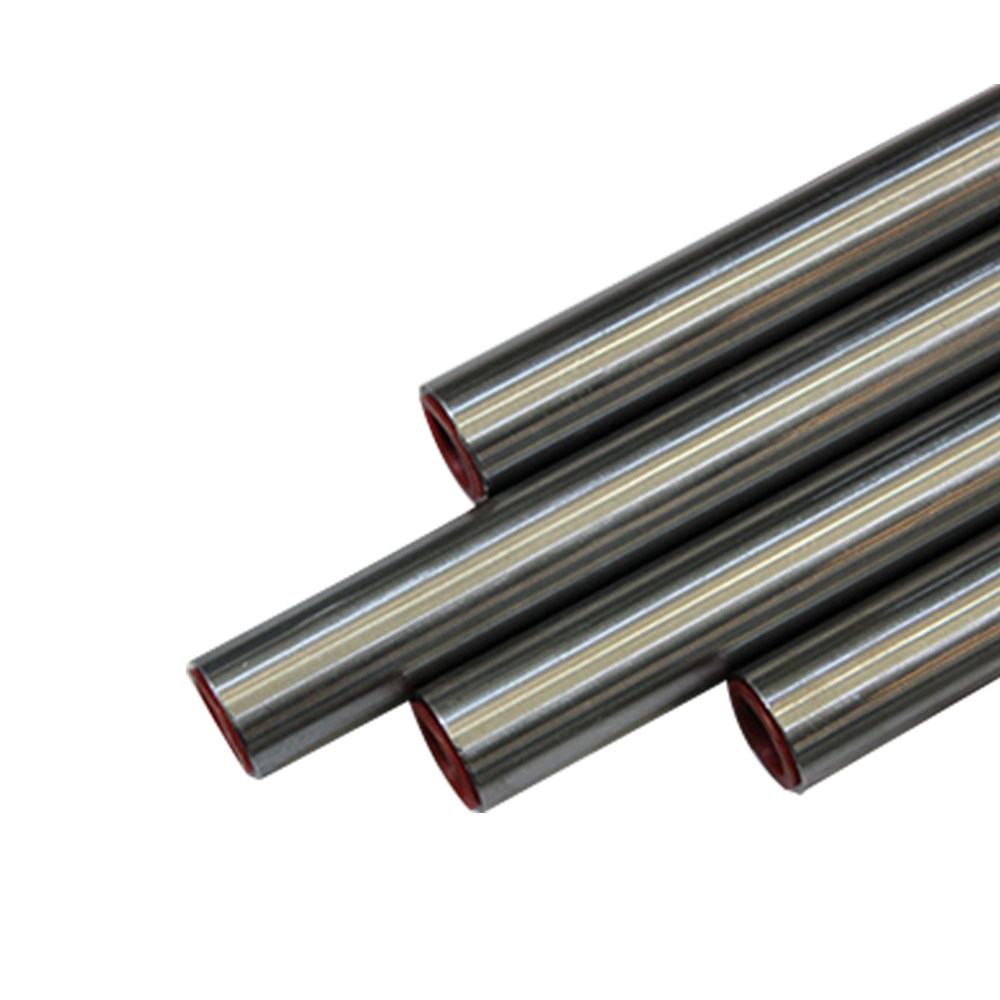

Product Introduction:
Standard: GB/T3639,DIN2391/C,EN10305-1,EN10305-4
Heating treatment: NBK, GBK, BKS, BK
Surface treatment: Bright, galvanized, phosphated
Material: ST37.4,ST35,ST45,ST52,E235,E355
Size: OD 4*WT 0.5mm -OD60*WT8mm
Length: Fixed Length 6 meters or 5.8 meters, Random Length 2-12 meters or as requests of customers
Feature:
No oxide layer on both sides of tube
High pressure, no leakage
High precision, smooth surface
Cold bending without deformation
No crack during flaring and flattening
Anti-rust on inside and outside
Chemical Composition:
Steel grade | Chemical composition% | ||||
C | Si | Mn | P | S | |
ST37.4/E235 | 0.07~0.13 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 |
ST35 | 0.07~0.13 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 |
ST45 | 0.17~0.23 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 |
ST52/E355 | 0.13 〜0.19 | 0.20 〜0.60 | 1.20 〜1.60 | ≤0.030 | ≤0.030 |
Mechanical Property:
Steel grade | Yield strength a | Tensile strength | Elongation |
ReH | Rm | A | |
min. | min. | min. | |
MPa | MPa | % | |
ST37.4/E235 | ≥235 | 340 to 480 | ≥25 |
ST35 | ≥235 | 340 to 480 | ≥25 |
ST45 | ≥255 | 410 to 520 | ≥25 |
ST52/E355 | ≥355 | 490 to 630 | ≥22 |
Tolerance:
OD/mm | Tolerance/mm | ID/mm Tolerance/mm | Straightness/mm |
4~30 | ±0.08 | ±0.08~±0.15 | 0.1/1000 |
30~38 | ±0.15 | ±0.15~±0.20 | |
38~50 | ±0.20 | ±0.20~±0.25 | |
50~80 | ±0.25~±0.35 | ±0.25~±0.35 |
Product Introduction:
Standard: GB/T3639,DIN2391/C,EN10305-1,EN10305-4
Heating treatment: NBK, GBK, BKS, BK
Surface treatment: Bright, galvanized, phosphated
Material: ST37.4,ST35,ST45,ST52,E235,E355
Size: OD 4*WT 0.5mm -OD60*WT8mm
Length: Fixed Length 6 meters or 5.8 meters, Random Length 2-12 meters or as requests of customers
Feature:
No oxide layer on both sides of tube
High pressure, no leakage
High precision, smooth surface
Cold bending without deformation
No crack during flaring and flattening
Anti-rust on inside and outside
Chemical Composition:
Steel grade | Chemical composition% | ||||
C | Si | Mn | P | S | |
ST37.4/E235 | 0.07~0.13 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 |
ST35 | 0.07~0.13 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 |
ST45 | 0.17~0.23 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 |
ST52/E355 | 0.13 〜0.19 | 0.20 〜0.60 | 1.20 〜1.60 | ≤0.030 | ≤0.030 |
Mechanical Property:
Steel grade | Yield strength a | Tensile strength | Elongation |
ReH | Rm | A | |
min. | min. | min. | |
MPa | MPa | % | |
ST37.4/E235 | ≥235 | 340 to 480 | ≥25 |
ST35 | ≥235 | 340 to 480 | ≥25 |
ST45 | ≥255 | 410 to 520 | ≥25 |
ST52/E355 | ≥355 | 490 to 630 | ≥22 |
Tolerance:
OD/mm | Tolerance/mm | ID/mm Tolerance/mm | Straightness/mm |
4~30 | ±0.08 | ±0.08~±0.15 | 0.1/1000 |
30~38 | ±0.15 | ±0.15~±0.20 | |
38~50 | ±0.20 | ±0.20~±0.25 | |
50~80 | ±0.25~±0.35 | ±0.25~±0.35 |
The products of our company are:precision steel pipes, honed tubes & piston rods for hydraulic cylinders. As one of the leading manufacturers in China, confirming to DIN2391/C, EN10305 and SAE J524 standard. We develops customized tubes solutions for Automotive, engineering machinery, railway locomo
